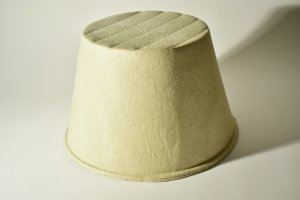

FF130E RECESSED LIGHT DRAFT STOP COVER

Go Green with the FF130E Insulation Protection Cover and start saving money on your energy bill. The FF130E Recessed Light Draft Stop Cover is a fire resistant enclosure specifically designed to protect your light fixture from insulation in the attic and to stop unwanted air leakage through your recessed light.

The FF130E has been tested in accordance with UL1598 for usage with IC and Non-IC rated recessed lights (see installation instructions for maximum lamp wattage and types).

Most recessed lights are not compatible with insulation and often start cycling on and off after being buried in cellulose, foam or fiberglass — a safety hazard. Pushing the insulation away is not an effective solution, since it creates air passages in the building envelope and wastes energy. Recessed lights account for up to 50% of the total thermal losses of a ceiling; with improved airtightness and continuous insulation, end users see significant energy savings.

The FF130E fits in seconds and requires no assembly or special tools. The flange on the bottom of the enclosure provides an improved seal and enhanced draft-stopping, while the slightly oval, dome-shaped design fits smoothly in a 16-inch on-centre joist space and keeps combustible insulation, such as blown-in cellulose, safely away from the hot light.

Internal Length: 15 in
Internal Width: 14 in
Internal Height: 9 in

Benefits

• Fire tested according to UL 1598 for usage with IC and Non-IC rated lights.
• Compatible with sprayed foam insulation, low density foam, blown-in insulation and lay-in insulation.
• Reduces heat loss through the light fixture.
• Limits the amount of cold or hot air entering from outside.
• Prevents insects and other small animals from entering through the light.
• Keeps flammable insulation at a safe distance from hot recessed lights.
• Flexible and lightweight (approx. 2 lbs).
• Easy to fit — can be fitted in seconds, no assembly required.
• Enhances the acoustic protection of the ceiling.
• Flexible material enables the cover to be fitted around obstructions or retrofitted.
• Maintenance free.

Downloads

• Attic Insulation Pot Light Covers Flyer (PDF)
• FF130E Assembly Drawing (PDF)
• Installation Instructions (PDF)
